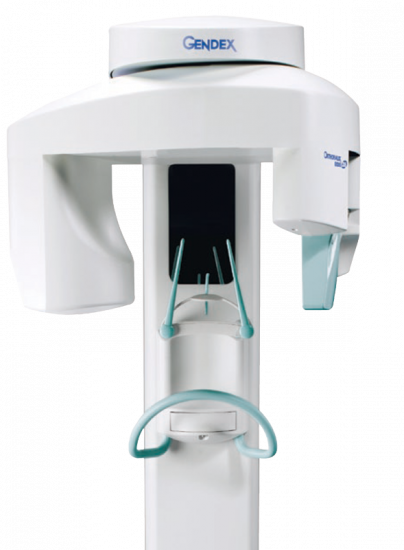

Gendex 8500 DDE Digital Panoramic X-ray
Product Information:
- Products Model: GEN-PANO08
- Product Brand: Gendex Panoramic
- Condition: Refurbished
This product is also in these categories:
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here. The shipping cost provided is an estimate. Actual shipping and handling costs may vary based on the destination, logistics, supply chain challenges, and other shipment requirements. The actual shipping cost will be added to the final invoice.
Professionals deserve in-demand features for excellent image quality. The Gendex Orthoralix 8500 delivers with the latest technology — such as the ease of laser beam positioning, the precision of morphology following, multi-motorized arm rotation, and the benefits of a 0.4 mm focal spot for exceptional detail recognition. Plus, with the option of a film-based or direct digital unit, there is a version of the 8500 to fit your needs for today and as your practice grows.
At last, a high quality, low maintenance panoramic is no longer a dream.
Award-Winning Design - The Gendex 8500 DDE Orthoralix sports an award-winning, modern design that links outstanding functionality and ease of use with pleasing high-tech aesthetics that simply look good in any practice. Integration into your office is a breeze. The small footprint and motorized telescopic column lets you place the 8500 where you need it — even when space is an issue.
- Medical Design Excellence Awards® recipient
- Motorized telescopic column makes the unit extremely compact
- Small footprint to fit into practices where space is an issue
High End Technology - Once the patient is accurately positioned with the triple laser beam system, the Orthoralix 8500 uses multi-motorized arm rotation that allows the x-ray generator to maneuver in a sophisticated path thus producing a more precise reproduction of the entire dento-maxillo-facial region. Throughout the exposure, magnification is kept constant for minimal distortion in radiographs in both film-based and direct digital models.
- Simple laser beam positioning for accuracy
- Precise morphology following and multi-motorized arm rotation
- 0.4 mm focal spot for sharper images
Direct Digital Panoramic X-Ray Evolution - Featuring convenient built-in LAN connectivity, the Orthoralix 8500 DDE model hooks up to your network right out of the box without requiring a dedicated card to be installed into a PC. The panoramic film cassette is replaced by a CCD sensor that digitally captures the x-ray. This allows for instant access to images on any computer connected to the network in the practice, saving time and increasing efficiency and productivity.
- Replaces panoramic film cassette with the latest CCD sensor technology
- Built-in LAN connectivity eliminates the need for a dedicated PC to acquire images
- Access digital radiographs from any PC on the network to save time
Includes:
- Acquisition computer included
GENDEX ORTHORALIX 8500 DDE Brochure
| kV | 60 – 80 kV |
| mA | 4 – 10 mA |
| Focal Spot | 0.4 mm, IEC 60336 (1993) |
| Exposure Time | 11 s for the child pan, 12 s for the standard pan |
| Line Voltage | 115 V AC, 60 Hz or 250 V AC, 50 Hz |
| Maximum Line Power Rating | 10 A at 250 V, 15 A at 115 V |
| Weight | 254 lbs (115 kg) |
| CCD Sensor Resolution | 10.4 lp/mm |
| CCD Sensor Pixel Size | 48 ?m |
| CCD Sensor Active Area | 146 x 6 mm |
| Image Resolution | 5.2 lp/mm |
| Image Pixel Size | 96 ?m |
| Image Size | 1536 x 2725 pixels (Standard Pan) |
| Minimum PC Requirements | Pentium® II CPU, 400 MHz, 256 MB RAM |
| Required Operating System | Microsoft® Windows 98®/ Windows 2000®/ Windows XP® |
